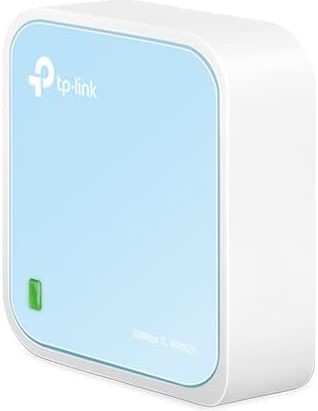

300Mbps Wireless N Nano RouterTL-WR802N

300Mbps wireless data rates is ideal for video streaming, online gaming and Internet calling

Pocket-size – Ideal for home and travel use

Supports Router, Repeater, Client, AP and hotspot operation modes

Powered through a micro USB port by an external power adapter or

USB connection to a computer provides flexibility for any situation

Easy installation in minutes

HARDWARE FEATURES

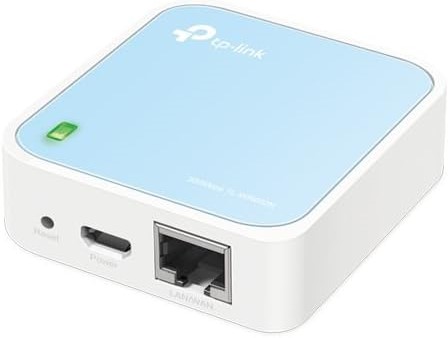

Interface	1 10/100Mbps WAN/LAN Port 1 Micro USB Port 1 Reset Button
External Power Supply	5V/1A
Wireless Standards	IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Dimensions ( W x D x H )	2.2 x 2.2 x 0.7 in. (57 x 57 x18 mm)
Antenna Type	On-Board



WIRELESS FEATURES
Frequency	2.4-2.4835GHz
Signal Rate	11n: Up to 300Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic)
Reception Sensitivity	270M: -65dBm@10% PER 130M: -70dBm@10% PER 108M: -82dBm@10% PER 54M: -73dBm@10% PER 11M: -82dBm@8% PER 6M: -86dBm@10% PER 1M: -90dBm@8% PER
Transmit Power	CE: <20dBm(2.4GHz) FCC: <30dBm
Wireless Modes	Router Mode, Repeater Mode, Client Mode, AP Mode, WISP Router Mode
Wireless Functions	Enable/Disable Wireless Radio, WMM, Wireless Statistics
Wireless Security	64/128/152-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK



SOFTWARE FEATURES
Quality of Service	WMM, Bandwidth Control
WAN Type	Dynamic IP/Static IP/PPPoE/ PPTP/L2TP
Management	Access Control Local Management Remote Management
DHCP	Server, Client, DHCP Client List, Address Reservation
Port Forwarding	Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS	DynDns, Comexe, NO-IP
VPN Pass-Through	PPTP, L2TP, IPSec (ESP Head)
Access Control	Local Management Control, Host List, Access Schedule, Rule Management
Firewall Security	DoS, SPI Firewall IP Address Filter/MAC Address Filter/Domain Filter IP and MAC Address Binding



OTHERS
Certification	CE, FCC, RoHS
Package Contents	TL-WR802N Power Adapter USB Cable Ethernet cable Quick Installation Guide Resource CD
System Requirements	Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 10/8.1/8/7 MAC®OS, NetWare®, UNIX® or Linux
Environment	Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
